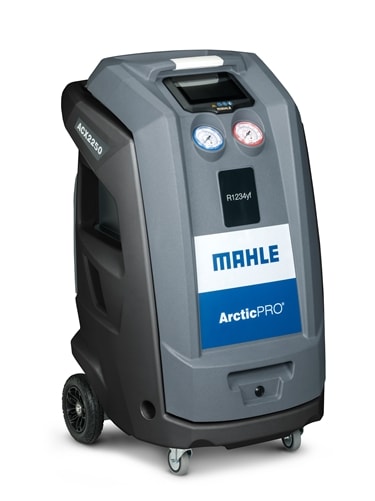

MAHLE R1234yf ACX2250 Refrigerant Handling Sustems

The ArticPRO ACX2250 is a state-of-the-art R1234YF A/C machine that will streamline your shop - offering a safe and price refrigerant handling.

FEATURES

• State-of-the-art, ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
• New ergonomic hinged service door simplifies unit service.
• LED light indicates status visible from anywhere in the workshop.
• Permanent, automatic wireless software updates, ensuring you always have the latest features.
• Oil management system automatically weighs recovered oil, allowing accurate replenishment of oil removed during service.
• Offers remote support capabilities that allow MAHLE technicians to connect to a unit over WiFi for troubleshooting and advanced support.
• Data management and reporting capabilities provide the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• A non-integrated refrigerant identifier prevents contamination of machine internals by using a third hose and coupler for sampling.
• Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• The unit retains valuable service records, network printing capability to print services provided for customer.

OPTIONAL FEATURES

• Optional thermal printer allows printing of service reports.
• Optional iOS and Android capable phone app allowing remote service session mirroring and advanced functions.

CertificationsSAE J2843, SAE J2888, UL 1963

Charge Performance+/- 0.5 oz. at 70° to 75° F (+/- 15g at 21° to 24° C)

Recovery Performance95% at 70° to 75°F (21° to 24°C) within 30 minutes

OperationFully Automatic

Charging Cylinder30 lb. (13.6 kg) DOT

Compressor3/8 HP – 0.279kW

Dimensions (H x W x D)47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)

Weight215 lb. (98 kg)

DisplayColor, 7” Capacitive Touch Screen

Filter Drier Capacity150 lb. (68 kg) spin-on type

Hoses9 ft. (2.75 m)

Hybrid FunctionCertified

LanguagesEnglish, French, Spanish

Operating Ranges50 degrees - 122 degrees F (10° to 50° C)

Power Source120 VAC - 60 HZ - 12 AMP

PrinterOptional

Vacuum Pump2 CFM dual stage

Warranty1 Year Labor, 2 Years Parts
