Your Price: $9,999.00
Call for the best shipping cost during Pacific business hours

Product Code: AP-PVL15

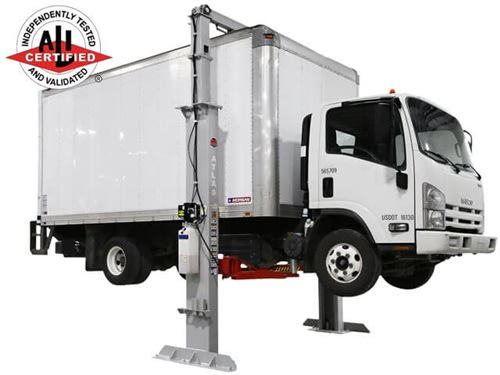

Atlas Platinum PVL-15 ALI Certified Overhead 15,000 lbs. Capacity 2 Post Above Ground Car Lift

The Atlas Platinum PVL-15 is an ALI CERTIFIED, commercial grade, overhead two-post lift designed to accommodate both long wheel base trucks and passenger cars. The Atlas Platinum PVL-15 has an overall height of 174 1/2" (14' 6 1/2"), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.

This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

The Atlas Platinum PVL-15 Specifications
Capacity	15,000 lb.
Overall Height	174 1/2" (14' 6 1/2")
Height To Shut Off Bar	164 1/4" (13' 8 1/4")
Overall Width (With Motor)	154 1/2" (12' 10 1/2")
Overall Width (Without Motor)	148" (12' 4")
Outside Column to Outside Column	135" (11' 3")
Maximum Lifting Height (Without Truck Adapters)	72 3/4" (6' 3/4")
Maximum Lifting Height (With Truck Adapters)	87 1/2" (7' 3 1/2")
Adapter Sizes	10" and 5" with 2 3/4" peg
Minimum Pad Height	6"
Clearance Between Columns	119 1/4" (9' 11 1/4")
Drive Thru	107 1/2" (8' 11 1/2")
Arm Length	36" - 52" (3' - 4' 4")
Column Size	14 1/2" x 8"
Thickness of Steel	8mm
Cable Diameter	.375"
Motor/Electrical Requirement	220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended
Oil Requirement	3-5 Gallons AW32/AW46
Shipping Weight	2,600 lb.
