Atlas ATTDPV15PX, PV-15P Overhead 15,000 lb Capacity Adj Height 2-Post Lift

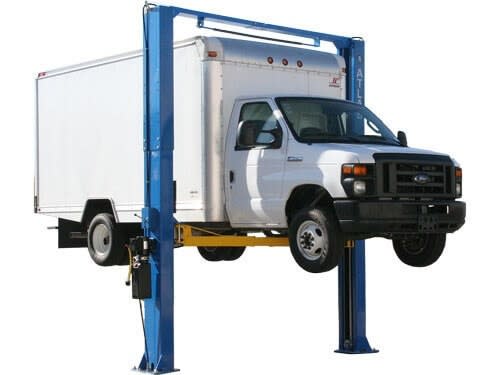

Atlas Atlas PV-15PX
Atlas Atlas PV-15P

Alternative Views:
Your Price: $6,499.00
Call us for latest promo or for the best possible price.



Product Code: XH-PV15PX

Unloading Options

I have the equipment to unload it.
In-Store Pick up
Ship to an installer for delivery & install.
Will Call to a Local Freight Terminal
Please call me for other options.

Qty:
Description Technical Specs


Atlas PV-15PX

Description:
The Atlas PV-15PX is a commercial grade lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is almost 123” with a drive thru space of 109”. The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards and frame configurations.

The Atlas PV-15PX has single point release, set of truck adapters, overhead above ground lift configuration, and symmetric arms.

Where Do I Position My Two Post Lift In My Garage?
There are many factors that will determine the best place to mount your two post lift. This and other frequently asked lift positioning related questions are answered here.

How Do I Get My Stuff Off The Truck?:
Many customers do not have access to loading docks and forklifts. We have assembled some photos of our products being unloaded with and without the aid of a forklift. Many of our freight carriers have power tailgates on their delivery trucks. There may be an extra charge for the power tailgate, depending on the carrier. The power tailgate is normally rated at 1000 LB. capacity. This is not enough capacity to unload most of our lifts. However, when used properly (and safely), the power tailgate (in conjunction with some common sense) allows the customer to off load many of our products without the use of a forklift.

Most truck shipments will be delivered by a commercial freight carrier operating a tractor/trailer rig. The semi trailer will be enclosed. Most commercial carriers have smaller straight trucks and some have small flatbed trucks, but the majority of freight companies will not use these smaller trucks for your delivery. Atlas Equipment cannot guarantee the type of truck that will be used for delivery. You should assume that your product will be delivered on a tractor/trailer rig that uses a 53 foot enclosed trailer. This is a VERY LONG rig. It is the truck driver's responsibility to make sure that your product is brought to the back of the delivery truck. It is the customer's responsibility to unload the product from the truck.

Symmetrical Columns And Arms:
The Atlas PV-15P two post above ground lift has symmetrical columns and symmetrical arms to allow easy access to the widest of vehicles.


Direct Drive Cylinder Configuration:
The Atlas PV-15P has the direct drive cylinder configuration.

There are two popular hydraulic cylinder configurations used in two post electric/hydraulic above ground lifts:

Atlas Equipment sells above ground lifts that incorporate both the direct drive cylinder configuration and the chain-over-roller cylinder configuration.

The base plate two post above ground lift implements the chain-over-roller configuration. This is the only hydraulic cylinder system that is possible in the base plate lift. The base plate two post above ground is designed for "low ceilings". The direct drive hydraulic cylinder configuration cannot be used in the base plate lift because the hydraulic cylinder would extend above the 9' 3" column when the lift arms were raised to the maximum height.

The "overhead" two post above ground lift may incorporate either the direct drive hydraulic cylinder or the chain-over-roller hydraulic cylinder.

Electrical Requirement:
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is recommended.

Installation:
The Atlas PV-15P above ground lift should be installed on a concrete floor. This concrete floor should have a minimum of six (6) inches of concrete with 3000 PSI strength.

Most of our above ground lift customers install their own car lifts. The average time to install the Atlas PV-15P car lift is five hours.

We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.

Parts:
Atlas Equipment stocks a complete inventory of lift parts for all the lifts we sell. Lift parts and technical support personnel are available.

Certain competitors do not stock the lifts they advertise and do not stock any of the lift parts or accessories. Lifting a car is serious business.

Features
  • 15,000 LB. capacity
  • Commercial grade
  • Single point lock release
  • Symmetric design
  • Powder coat finish
  • Adjustable to three (3) heights: 12' 6 3/8" (requires the purchase of additional shorter cables), 13' 6 3/8", and 14' 9 3/8"
  • Truck adapters included
  • Anchor bolts included
