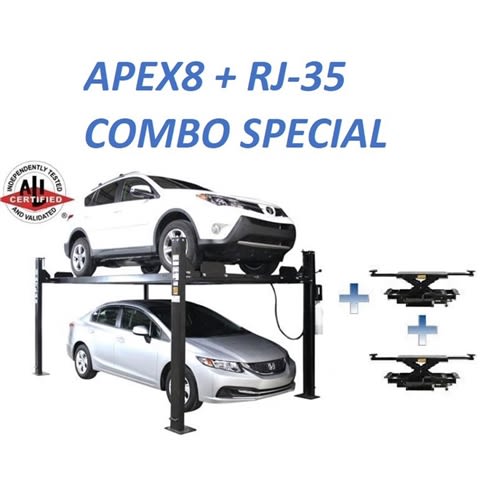

Atlas ATTD-APEX8-COMBO Certified APEX8 & RJ35 Combo

Features and Benefits:

• Combo package includes ALI Certified APEX 8 lift & two RJ35 Bridge Jacks
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• Drip Trays Included
• Wheel Stops Included
• Wheel Chocks Included
• Truck Adapter set for Each Jack Included
• This part number WILL CALL ONLY

The Atlas APEX8 is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easly double their space by stacking most passanger cars.

The Atlas APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day..

This combo package also includes two of the the popular Atlas RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas APEX8 Specifications:

• Capacity: 8000 lbs
• Lifting Height, Top of Runway: 72" (6')
• Clearance Under Runways: 67" (5' 7")
• Height of Columns: 85" (7' 1")
• Overall Width: 104" (8' 8") w/ motor 114" (9' 6")
• Overall Length w/ Ramps: 207 5/8" (17' 3 5/8")
• Runway Length: 169 1/2" (14' 1 1/2")
• Runway Width: 18 2/4"
• Runway Thickness: 4 1/3"
• Width Between Runways: 38" w/ Rail 33"
• Outside Runway to Outside Runway: 75 1/4" (6' 3 1/4")
• Clearance Between Columns: 94" (7' 10")
• Length Between Columns: 157 1/3" (13' 1 1/3")
• Drive Thru: 80 1/4" (6' 8 1/4")
• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2000 lbs

• Atlas RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"
  • Max Height Raised w/ Adapters: 17 1/4"
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"
